Length measurement + filling technology

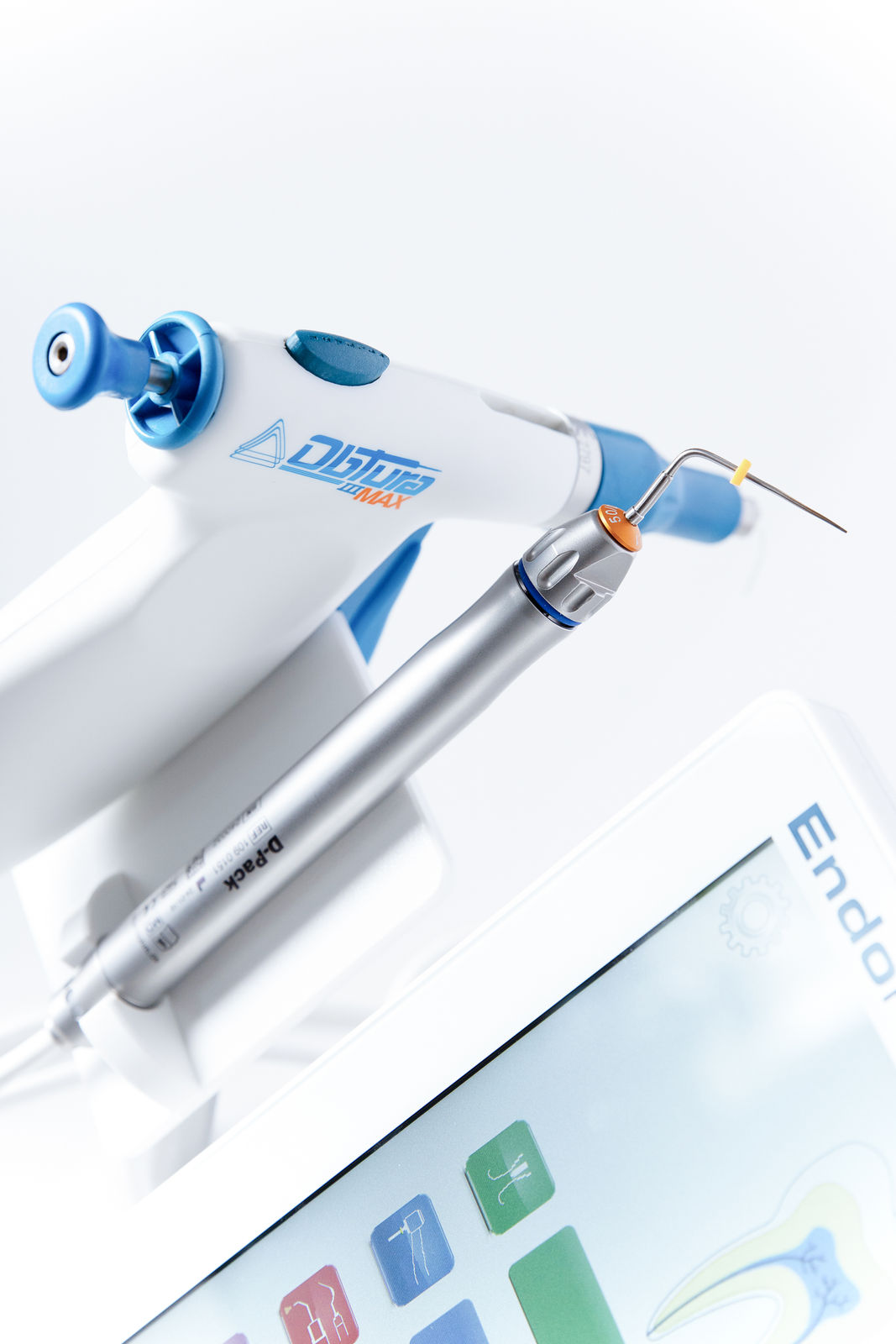

The EndoPilot² obturation set is an ideal unit for carrying out thermoplastic fillings. The filling technology consists of a down-pack for heating and separating gutta-percha pins and a BackFill gun. The integrated down-pack enables three-dimensional filling of the apical third. The use of the high-quality BackFill gun ensures comfortable thermoplastic filling of the middle and coronal thirds. The pistol grip lever is easy to operate and enables optimum control of the flow rate and filling process.
Different temperatures can be selected via the touch display and reached in a short heating time of 2-3 minutes thanks to a powerful control system.
The EndoPilot² is developed and produced in Germany to guarantee the highest quality standards and is ideal for practitioners who demand the highest standards of accuracy and efficiency.
Technical data
Battery life of 16 hours
Simple updates via micro SD card
7’ TFT colour display
Power supply according to IEC 60601 for medical devices
Dimensions: 19 cm x 20.5 cm x 17.5 cm (basic device)
Bluetooth footswitch with filter against interference signals
Heating time of the down-pack of a few seconds
Heating time of the BackFill gun of 2-3 minutes
Manual length determination with the fast, patented pulse measuring method in real time
Pulse measuring method:
Requires only one measurement signal⇒faster and more precise by analysing several individual values
No falsification due to movement of the file
No ‘false apex’, which many devices display when the instrument first comes into contact with liquid
Can be modularly expanded to include the reprocessing, ultrasound and pump functions
Display and control of temperature via large 7’ TFT colour display
You can display a customised text on the start screen of your EndoPilot2 (e.g. your practice name, treatment room, department)
EndoCart available for transport to different treatment rooms
Easy wireless use thanks to integrated rechargeable battery
Components of the EndoPilot² Obturation set:
Control unit:

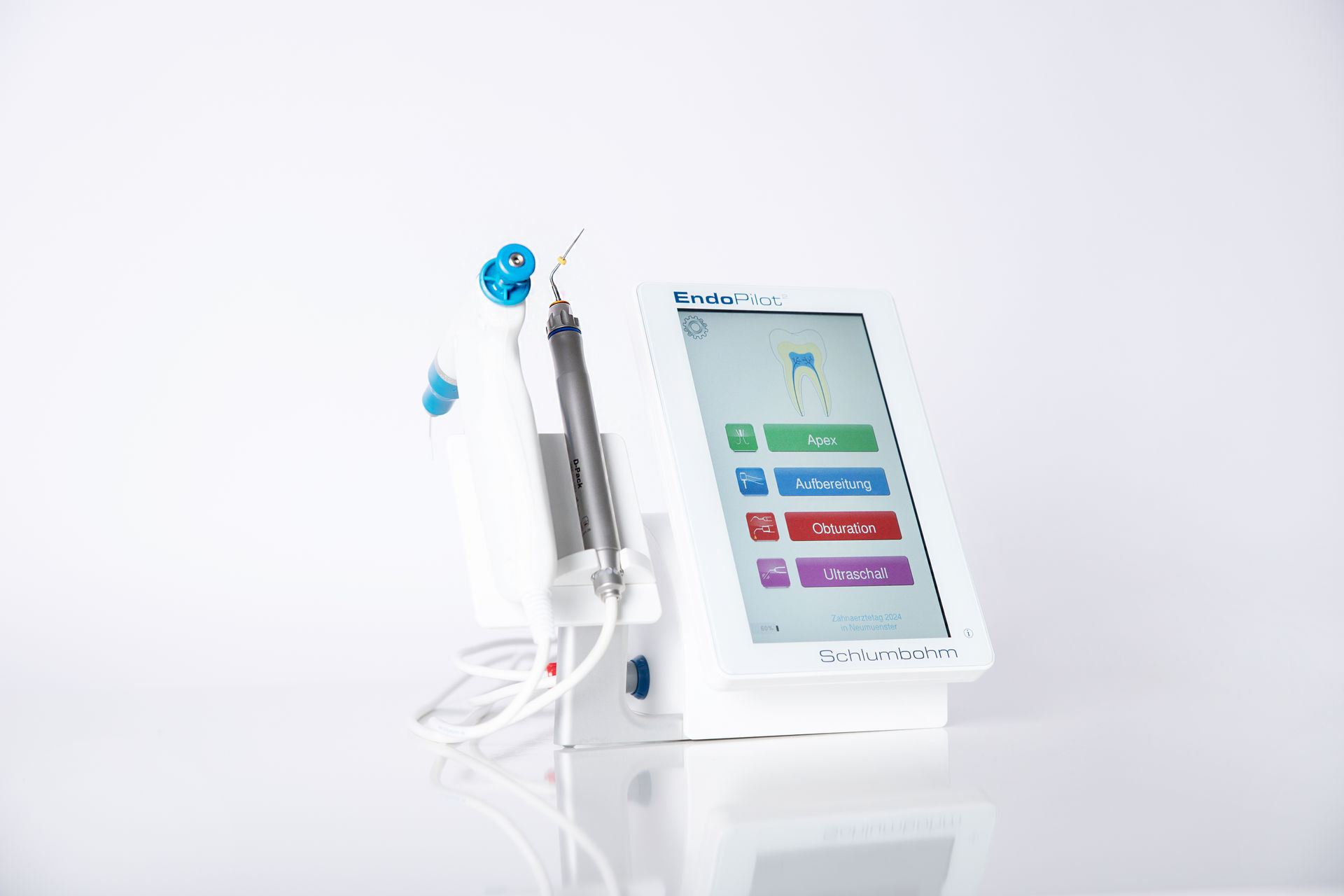

EndoPilot² control unit with 7’ touch display
Med. Power supply unit 100-240V/50-60Hz
Wireless foot control, single, bluetooth
Apex cable set
Filling technology:
DownPack/backfill holder left

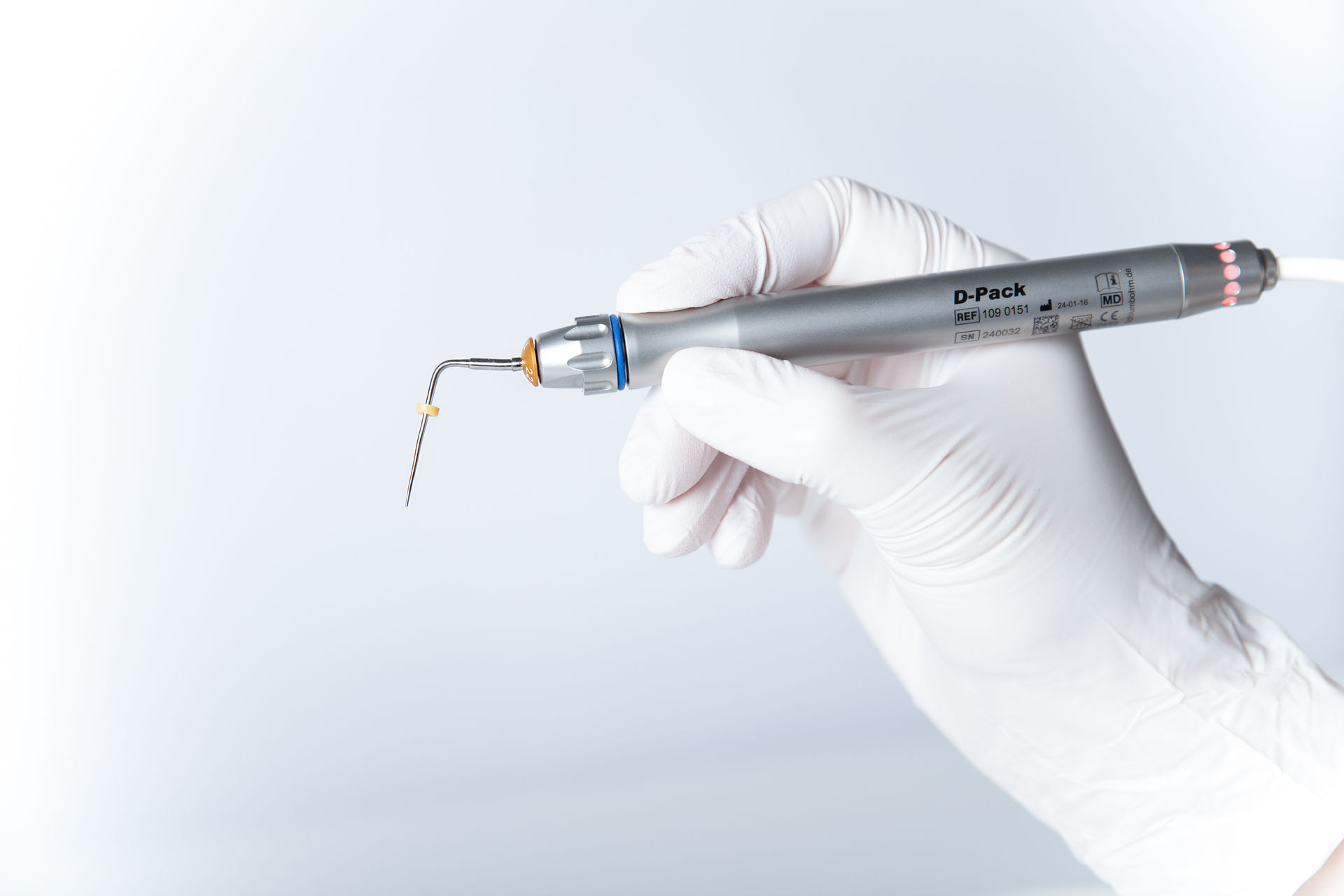

Down-pack handpiece, with LED display
Heating tip size: fine

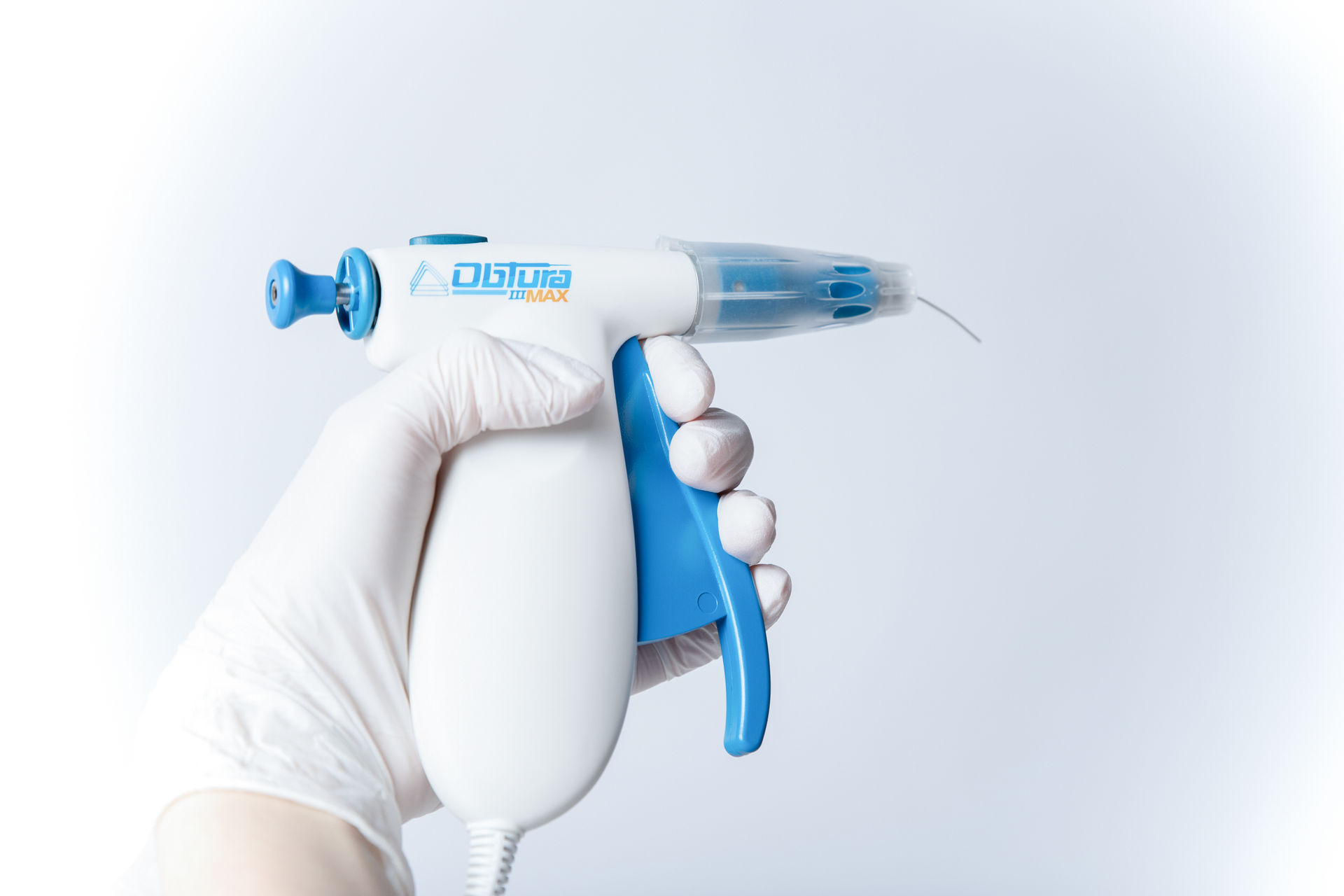

Obtura back-fill gun
Gutta Percha Bar (100 pieces/box)
Protective sleeve (4 pieces/box)
Needles Obtura Ø25 ga (5 pieces/box)
Cleaning tool
Cleaning set
Expandable by:
Reprocessing:
EDP motor with ISO-E standard & LED display and integrated apex contact
EDP contra-angle handpiece, 1:1, insulated, ISO-E standard
Motor holder right
Ultrasonic extension set
Pump module + accessories
Repair and warranty:
Schlumbohm® offers an unlimited repair service and a one-year guarantee.
Delivery is exclusively to specialised circles from industry, medicine and trade.
There is no right of return for sterile products or sealed goods
